Controllers

Our Acre Jean  9 channel RGBW Starcloth DMX/PSU Controllers are required to power & control any Starcloth Solutions RGBW Starcloths

Our 9 channel DMX/PSU Controllers are manufactured in the United Kingdom. by the U.K.'s leading drape and Starcloth company.

To enable your RGBW Starcloth to twinkle, you will need to plug into a DMX Lighting Desk

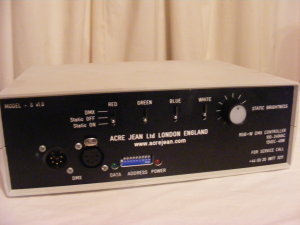

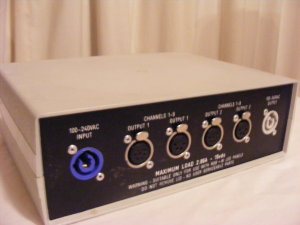

The controllers have stand alone switches enabling you to change the colours on the RGBW Starcloth & dim the intensity of the brightness   You can also plug your 5 pin DMX cable in for controlling with a lighting desk. Our 9 channel controllers are powered by a standard 15Amp plug to a blue powercon plug. The RGBW Starcloths plug into the 6 and 4 pin XLR sockets between the powercon sockets.

Technical Specs:
Input Voltage:  110V - 220V

Output Voltage:

 15V
Output Amps:  2.6Amps
DMX Channels: 9
DMX Input/Output: 5pin XLR
Starcloth Connectors: 6pin XLR, 4pin XLR
Power sockets: Powercon connectors
